Think of a site architecture diagram as more than just a technical flowchart. In reality, it’s the strategic blueprint for your entire website. It’s a visual map that lays out every page and, more importantly, how they all connect. This gives you a clear roadmap that everyone—from users and search engines to your own development team—can follow.

Why Your Site Architecture Diagram Is a Strategic Blueprint


The image here shows how architects analyze a physical site before designing a building. This idea translates perfectly to the web. A building's blueprint has to account for its surroundings and purpose; likewise, your site architecture diagram needs a solid foundation of data and strategy to build a website that people can actually use and enjoy.

Before you even think about drawing a single box or line, it's critical to grasp why this diagram is so important. It's not just a formality you check off a list. It’s a proactive tool that helps you sidestep expensive mistakes and pave the way for future growth.

Building a website without a diagram is like building a house without a plan. Sure, it might stand up for a bit, but it’s going to be a nightmare to navigate and even harder to add a new room later on.

A well-thought-out diagram becomes the single source of truth for your entire team. It gets designers, developers, and marketers on the same page, all working from a unified vision. Everyone knows exactly how their piece of the puzzle fits into the grand scheme.

This shared understanding is vital. I've seen projects go off the rails because the marketing team was busy creating content for a section that the developers didn't even know was a priority. The result? Wasted time and blown budgets. A clear diagram just gets rid of that confusion from day one.

Before we dive deeper, let's summarize the core advantages. Investing time in a proper site architecture diagram pays off in multiple ways, from improving the user journey to boosting your search rankings.

Key Benefits of a Well-Planned Site Architecture

Benefit AreaSpecific AdvantageImpact
Team AlignmentCreates a single source of truth for all stakeholders.Prevents miscommunication, rework, and wasted resources.
User ExperienceEnsures logical, intuitive navigation pathways.Reduces bounce rates and encourages deeper site exploration.
Content StrategyVisually identifies content gaps and orphaned pages.Guarantees a comprehensive and cohesive content offering.
SEOFacilitates efficient crawling and indexing by search engines.Improves organic visibility and authority distribution.
ScalabilityProvides a clear framework for future website growth.Makes it easier and more cost-effective to add new sections.

As the table shows, this isn't just about organizing pages—it's about building a stronger, more effective digital asset from the ground up.

Clarifying Page Relationships and Preventing Gaps

One of the most immediate jobs of a site architecture diagram is to make the relationships between pages crystal clear. It defines the hierarchy, showing what your main categories are and which sub-pages live under them. This visual layout is incredibly valuable for spotting potential content gaps before anyone starts building.

For instance, while mapping out an e-commerce site, you might notice there isn't a logical home for a "Returns Policy" page within the main "Support" section. Catching this during the diagramming stage is a quick, painless fix. Finding it after the site is already built? That can lead to clunky navigation and a seriously frustrating experience for your customers.

Improving Navigation and User Experience

A logical site structure has a direct and powerful impact on how easily people can find what they're looking for. When your site architecture is intuitive, it creates a positive user experience (UX), which in turn encourages visitors to stick around longer and dig deeper into your content. This isn't just a nice-to-have feature; it's a fundamental part of any high-performing website.

Think about these user-focused wins:

  • Reduced Click Depth: A smart diagram helps you design a "flat" architecture. The goal is to let users get to any page on your site within three to four clicks from the homepage.
  • Intuitive Pathways: It carves out predictable navigation routes, so users don't have to think twice about where to find something. It just feels natural.
  • Elimination of Orphan Pages: The diagram ensures every single page is linked from somewhere else, preventing "orphan" pages that are completely invisible to both users and search engines.

This practice of mapping a space for optimal flow has deep roots. In the world of physical architecture, diagrams have long been used to blend a site's environmental and cultural data into visual plans. In fact, as detailed on Archisoup.com, these diagrams historically helped architects seamlessly integrate new buildings with historic areas, creating cohesive and functional environments.

Laying the Groundwork for SEO Success

Finally, let's talk SEO. Your site architecture diagram is one of the most powerful SEO tools you have. Search engines like Google love websites that are easy to crawl and understand. A clean, logical structure helps their crawlers discover all of your content efficiently and, just as importantly, grasp the thematic connections between your pages.

This strategic layout is also key for distributing "link equity" (or authority) across your site. Your most important pages, like your main services or product categories, can be placed higher up in the architecture. This ensures they get more internal links, which signals their importance to search engines.

If you skip this step, you're setting yourself up for major crawling problems. Valuable content can get buried so deep within the site that it becomes effectively invisible to search bots—and to the customers you're trying to reach.

Building a Strong Foundation: Your Pre-Diagram Checklist

A great site architecture diagram isn't something you just whip up. It's the end result of some serious homework. Jumping straight into a diagramming tool without doing the prep work is like trying to build a house without a blueprint—you’ll get something standing, but I guarantee it won't be stable or what you actually wanted.

So, let's walk through the essential research you need to nail down before you even think about opening Figma or Whimsical. This is all about gathering the right intelligence to build a strategic framework from the ground up. Before you start drawing, it's a good idea to run through an ultimate website requirements checklist. It helps get your thoughts organized and makes sure nothing critical falls through the cracks.

The idea of pre-planning a structure isn't new; it's a practice with ancient roots. If you look back, the earliest large-scale human constructions show a clear understanding of spatial planning. Take Göbekli Tepe, a site in Turkey dating back over 11,000 years. The layout shows incredible geometric mastery and organization. It's proof that builders have been thinking about context, function, and geography long before we were mapping websites.

First Things First: Define Your Website's Goals

Before you can map out a single page, you have to be crystal clear on what you want the website to actually do. Is the main goal to get leads from a contact form? Sell products? Or is it to become a trusted resource by publishing top-notch content? Your answer will shape the entire structure.

For instance, an e-commerce site will naturally be built around product categories, individual product pages, and a buttery-smooth checkout flow. A B2B service company, on the other hand, will probably have a structure focused on service pages, case studies, and clear calls-to-action to book a demo or consultation.

I see this mistake all the time: teams start mapping out pages without agreeing on the primary business objective. The result is always a messy diagram with competing priorities, which leads to a confusing user journey and tanks conversion rates. Define what success looks like first, then build the map that gets you there.

Dig Deep with Keyword Research

Keyword research is the absolute bedrock of a smart site architecture. It’s how you find out what your audience is actually searching for and the exact words they're using. This data is pure gold for naming your main navigation, subcategories, and even individual pages.

Your research should zero in on identifying:

  • Head Terms: These are the broad, high-volume keywords that will become your main categories. Think "men's shoes" or "project management software."
  • Long-Tail Keywords: These are more specific, lower-volume phrases that are perfect for subcategories and blog posts, like "men's waterproof leather hiking boots."
  • Topic Clusters: You'll start to see groups of related keywords. These are perfect for creating a pillar page with supporting articles, a structure you can literally map out in your diagram.

When you base your page names and hierarchy on real search data, you're no longer just guessing. You're building a website that speaks your audience's language and is set up to perform well in search engines from day one.

Analyze Your Competitors’ Site Structures

Why reinvent the wheel? A quick analysis of how your top competitors structure their websites can give you some amazing ideas and show you where their weaknesses are. Just pick your top three to five rivals and start deconstructing their navigation.

Ask yourself a few key questions as you browse:

  1. How do they group their main services or product categories?
  2. What's important enough for their main navigation versus what's tucked away in the footer?
  3. Do they have any resource centers or content hubs that seem to be working really well?
  4. What does their URL structure look like? Is it clean and logical?

The point here isn't to copy them. It's about spotting patterns, finding gaps you can exploit, and getting ideas to create a better, more intuitive experience on your own site. This analysis will also give you a head start on your internal linking plan. A well-thought-out diagram makes executing a solid https://www.thatisrank.com/articles/internal-linking-strategy so much easier down the road.

Choosing the Right Diagramming Tool for Your Project

Picking the right software to map out your site architecture can feel like a whole project in itself. You've got everything from digital whiteboards to heavy-duty professional software, and the choice you make genuinely affects your workflow, how well your team collaborates, and the quality of your final blueprint.

Making the wrong call here isn't just an inconvenience; it leads to real frustration, wasted hours, and a diagram that's a pain to share or update. Let's cut through the marketing fluff and focus on what actually works, whether you're a freelancer sketching a small site or an agency wrestling with a massive enterprise build.

Key Factors for Your Decision

Before we start name-dropping tools, let's talk about what to look for. When I'm evaluating software for creating a site architecture diagram, I always come back to four key things: ease of use, collaboration features, integrations, and, of course, the price tag.

A tool can have a million features, but if it has a clunky, unintuitive interface, your team just won't adopt it. Likewise, if your diagramming tool can't talk to your project management software, you’re just creating another data silo—which is exactly what we're trying to avoid.

Think of it like this: a great tool helps you compile all the preliminary data, just like a detailed site analysis does before an architectural build.


This image is a perfect example of how modern software can layer different data points—like topography and existing structures—to build a comprehensive picture. That’s the level of clarity we're aiming for with our own diagrams.

Alright, let's get into the specifics. I don't believe in a single "best" tool for everyone. The best tool is the one that fits your team, your project, and your budget.

Here are a few of my go-to options, broken down by what they do best:

  • For Brainstorming (Miro & FigJam): These collaborative whiteboards are incredible for those early, messy stages. I use them for virtual workshops where the whole team can jump in, drag things around, and throw ideas on the infinite canvas. They absolutely shine for real-time, creative collaboration.
  • For Formal Diagramming (Lucidchart & Whimsical): When it's time to get serious and create a polished, official diagram, these are my top picks. They're built for this, offering specialized shapes, smart connectors, and templates that make creating a professional site architecture diagram much easier.
  • For Quick Sitemaps (GlooMaps & Slickplan): Sometimes, all you need is a fast, simple, visual sitemap. These purpose-built tools are unbeatable for speed. You can drag, drop, and have a clear sitemap in minutes, but they don't have the deeper diagramming muscle of the other options.

This whole field has come a long way. The evolution of diagramming software reflects a bigger shift in how we access and process information. We’ve seen huge leaps in analytical precision, especially since 2007 with the wider availability of historical street-level imagery and GIS data. This has given us a much richer context for site analysis and, ultimately, better design decisions. You can read more about how these digital resources have reshaped modern planning over at Monograph.com.

My personal workflow often starts on Miro for the initial messy brainstorm with the client. Once we have a rough consensus, I move the project into Lucidchart to build the formal, structured diagram that will serve as the final project blueprint. This two-tool approach gives me both creative freedom and structured precision.

Making the Final Choice for Your Needs

To land on the right tool, you need to find the one that fits your situation best. A solo consultant who just needs a clean visual has very different needs than a large, distributed team that requires deep integrations and robust commenting features.

To simplify your choice, I've put together a quick comparison of my most frequently recommended tools. This should help you narrow down the options based on your primary needs.

Comparison of Site Architecture Diagramming Tools

Tool NameBest ForKey FeaturePrice Point
MiroTeam brainstorming and workshopsInfinite canvas and real-time collaborationFreemium
LucidchartFormal, detailed architecture diagramsSmart connectors and data linkingSubscription
GlooMapsQuick and simple visual sitemapsExtreme ease of use and speedFree

My best advice? Take advantage of the free trials. Don't just read about them—get your hands dirty. Spend an hour in your top two or three contenders and try to build a small, sample diagram.

The tool that feels the most natural and causes the least friction is almost always the right one for you and your team.

How to Build Your Site Architecture Diagram

Alright, you've done your homework and picked a diagramming tool. Now for the fun part: taking that blank canvas and turning it into a strategic blueprint for your website. We're going to build a site architecture diagram from the top down, focusing on a structure that feels intuitive for users and makes sense to search engines.

To keep things practical, let's imagine we're building a diagram for a fictional e-commerce site that sells sustainable home goods. This will help us walk through the process with a concrete example instead of just talking theory.

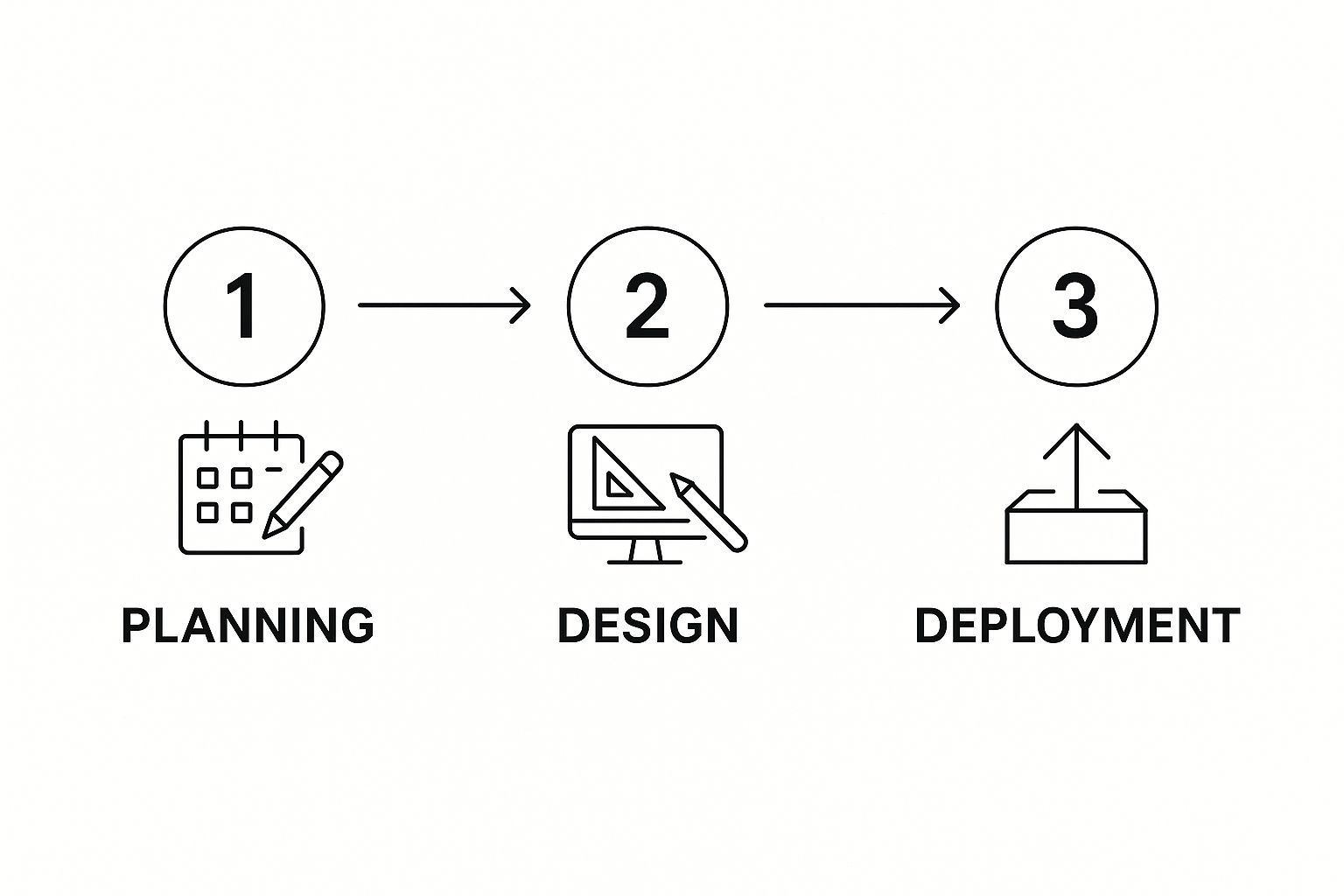

This whole process isn't just a chaotic brainstorm; it's a structured way to bridge the gap between your initial strategy and the final design.


As you can see, building the diagram is a central, organizing step that brings order to the entire project.

Start with the Homepage and Main Categories

Every site diagram I've ever built starts at the top with the homepage. Think of it as the trunk of a tree; every other page will branch out from here.

Right below the homepage, you’ll map out your main navigation categories. These are the big, important sections of your site, and they should come directly from your keyword research and business goals.

For our sustainable home goods store, these top-level categories might be:

  • Kitchen & Dining
  • Bed & Bath
  • Decor & Furniture
  • Our Story
  • Blog

These pages make up Level 1 of your site's hierarchy. My advice is to keep this list tight—somewhere between five and seven categories is usually the sweet spot. Any more than that and you risk overwhelming visitors. Getting this initial structure right is the most critical part of the entire site architecture diagram.

Flesh Out Your Subcategories and Content Pages

Once your main categories are locked in, it's time to add another layer of detail by mapping out the subcategories. This is where you build Level 2 of your architecture.

Under "Kitchen & Dining," for example, you might add subcategories like "Reusable Storage," "Eco-Friendly Cookware," and "Organic Cotton Linens."

From there, each subcategory branches out into individual product or content pages, which form Level 3. This is where the real meat of your site lives.

Pro Tip: I've found it incredibly helpful to use different shapes or colors to distinguish between page types. Try using rectangles for category pages, ovals for product pages, and maybe diamonds for info pages like blog posts. This kind of visual coding makes the diagram way easier to understand at a glance, especially on larger, more complex sites.

This hierarchical approach creates a logical path for your users, guiding them from broad ideas to very specific content. It also clearly signals the thematic relationships between your pages to search engines.

Design for a Flat and Scalable Structure

One of the biggest goals here is to create a flat architecture. What does that mean? Simply put, you want to minimize the number of clicks it takes to get from the homepage to any other page on your site.

A good rule of thumb I always follow is the "three-click rule." Users should be able to find what they're looking for in three clicks or less.

A flat structure is a win-win for two big reasons:

  1. Better User Experience: People find what they need fast, without getting lost in a confusing maze of menus. A poor user experience is a killer—one study showed 73% of users will just leave a site that's hard to navigate.
  2. Stronger SEO Performance: A flatter site is easier for search engine crawlers to discover and index completely. It also means the authority from your homepage flows more efficiently to your deeper pages.

As you're building your diagram, constantly check your click depth. If you spot important pages buried four or five levels deep, that’s a red flag. It’s time to rethink your structure. To dive deeper into how this impacts search rankings, check out our comprehensive guide on website architecture.

Visualize Your Internal Linking with Topic Clusters

Your diagram isn't just a static map of pages; it's a dynamic blueprint for your internal linking strategy. This is the perfect place to start planning your topic clusters.

A topic cluster is built around a main "pillar page" that covers a broad topic. This pillar page then links out to several more specific "cluster pages" that support it.

Let's go back to our e-commerce example. The "Blog" could be a hub for several pillar topics. From a pillar about sustainable living, you could draw lines to cluster posts like:

  • "10 Ways to Reduce Kitchen Waste"
  • "A Guide to Non-Toxic Bedding Materials"
  • "How to Decorate with Reclaimed Wood"

By mapping these relationships directly in your site architecture diagram, you're creating a clear, actionable plan for passing link equity and demonstrating topical expertise to search engines. This is so much more effective than just randomly linking pages together after the site is already built.

Refining Your Diagram for SEO and UX Wins


Creating your site architecture diagram isn't the final step; it's where the real work of optimization begins. This is your chance to turn a solid blueprint into a strategic advantage that can dramatically improve search rankings and create a seamless user experience.

Think of it like an architect reviewing building plans. You’re looking for narrow hallways, hidden rooms, and structural weak points before the first brick is even laid. By addressing potential SEO and user experience (UX) issues at this stage, you save yourself a world of hurt—and a ton of time and money—that would otherwise be spent fixing a live site. It’s all about being proactive.

Plan Your URL Structure Directly in the Diagram

One of the most impactful things you can do is map out your URL structure right on the diagram itself. Clean, logical URLs are a bedrock of good technical SEO, giving both search engines and people immediate context about what a page is and where it fits.

Instead of leaving URLs up to your CMS or a developer later on, take control by annotating each page in your diagram with its intended URL slug.

Let's go back to our sustainable home goods store example. A product page for eco-friendly cookware might be mapped out like this:

  • Main Category: /kitchen-dining/
  • Subcategory: /eco-friendly-cookware/
  • Product: /bamboo-utensil-set

This creates a final URL of yourdomain.com/kitchen-dining/eco-friendly-cookware/bamboo-utensil-set. It’s instantly understandable and packed with relevant keywords. Plotting this out in the diagram ensures your entire site follows a consistent, logical pattern.

A classic mistake I see all the time is letting the CMS auto-generate slugs. A URL like yourdomain.com/cat/p-id-8923 tells everyone absolutely nothing. Taking a few extra minutes to define descriptive URLs in your diagram is one of the highest-impact, lowest-effort SEO moves you can make.

Audit for a Shallow Click Depth

Click depth is simply how many clicks it takes to get from your homepage to any other page on your site. Keeping this number low is critical for both SEO and UX. People are impatient; if they can't find what they want quickly, they'll bounce. In fact, a whopping 73% of users admit they'll leave a site that’s difficult to navigate.

Your goal should be to keep every important page within three clicks of the homepage. Your diagram is the perfect tool for this—just trace the path from the top down.

As you scan your diagram, ask yourself these questions:

  • How many clicks to our core product or service pages?
  • Are any of our most important blog posts or resources buried more than three levels deep?
  • Can we simplify the navigation or add cross-links to flatten the structure?

Finding a page that’s five clicks deep on a diagram is a simple fix. You just move it up in the hierarchy or add a prominent internal link from a higher-level page. Discovering that same problem six months after launch? That’s a much bigger headache. Once your diagram feels right, a full website user experience audit can confirm your decisions with real user data.

Your diagram isn't just for hierarchy; it's your battle plan for internal linking. Internal links are how you spread authority—often called "link equity"—across your site. Powerful pages, like your homepage, can pass some of that strength to more specific pages deeper within the site.

Don't just draw lines from parent to child pages. Use the diagram to pinpoint strategic linking opportunities. For instance, you could draw a connecting line from a popular, high-ranking blog post directly to a new product page you're trying to promote. This visual cue confirms you're channeling authority exactly where it needs to go.

Ultimately, a well-planned site architecture diagram makes it far easier to execute a cohesive SEO strategy. The clarity it provides ensures your site is a breeze for search engines to crawl and index. For a more detailed exploration, our guide on https://www.thatisrank.com/articles/site-structure-seo explains this crucial relationship in greater depth.

Common Questions About Site Architecture Diagrams

Even with the best process laid out, creating a site architecture diagram is where theory smacks into reality. It’s natural for questions to come up. I’ve heard plenty over the years, so let's walk through some of the most common ones I get asked.

How Often Should I Update My Diagram?

A site architecture diagram is not a "set it and forget it" kind of document. If it is, it quickly becomes useless. Think of it as a living blueprint for your website.

So, when should you pull it out for a refresh? A good rule of thumb is to update it whenever you're making a meaningful change to your site's structure.

This typically includes:

  • Major Content Pushes: Rolling out a new service line, adding a big resource center, or even launching a new blog category are all good reasons for an update.
  • Website Redesigns: This is a big one. Any significant overhaul of your navigation or user journeys demands a complete diagram refresh.
  • Regular Check-ins: Even if nothing major has changed, it’s smart to review it quarterly or at least twice a year. This helps you spot minor drifts from the plan and keeps the diagram aligned with what’s actually live.

Keeping it current ensures it remains a valuable tool, especially for new team members who need to get up to speed on how the site is put together.

What If My Site Is Too Large to Diagram?

I hear this a lot, especially from people running huge e-commerce sites or sprawling content hubs. The idea of mapping out thousands, or even tens of thousands, of pages is overwhelming. The good news? You don't have to.

For massive websites, the secret is to diagram patterns and templates, not every single page.

Instead of trying to draw a box for every product, you map the structure down to a logical endpoint, like the subcategory level. From there, you use a single box to represent the page template. For instance, you’d have one box labeled "Product Page Template" and maybe use annotations to describe its key elements.

Imagine diagramming a site like REI. You wouldn't map every single tent. Instead, your diagram might show the path: Homepage > Camping & Hiking > Tents & Shelters > Backpacking Tents. The next and final box would simply be "Product Detail Page," representing all individual tent pages within that category.

This keeps your diagram from becoming a tangled, unreadable mess while still showing exactly how the site works.

Flat Architecture vs. Deep Architecture: Is Deep Ever Okay?

We’ve talked a lot about the benefits of a "flat" architecture—keeping every page within a few clicks of the homepage. But does that mean a "deep" architecture is always wrong?

For the vast majority of websites, a flat structure is absolutely the way to go for better user experience and SEO. However, there are niche cases where a deeper structure isn't just acceptable, but necessary.

This usually applies to highly specialized or archival sites. Think of a massive online library for technical documentation. A user might naturally need to follow a path like Software > Version 2.0 > API Reference > Authentication Methods > OAuth 2.0 Endpoints. In that specific scenario, the depth makes sense because it follows a logical, expected hierarchy.

The real test is always user intent. If your target audience expects and needs that level of granularity to find what they're looking for, a deep structure can work. For 99% of business websites, though, sticking to a flat architecture is your best bet.


Ready to build a winning website? Start by tracking what matters. That's Rank gives you a complete SEO dashboard to monitor keyword rankings, audit your site's health, and see exactly what your competitors are doing. Get the clarity you need to climb the SERPs. Learn more and get started for free.
